Description

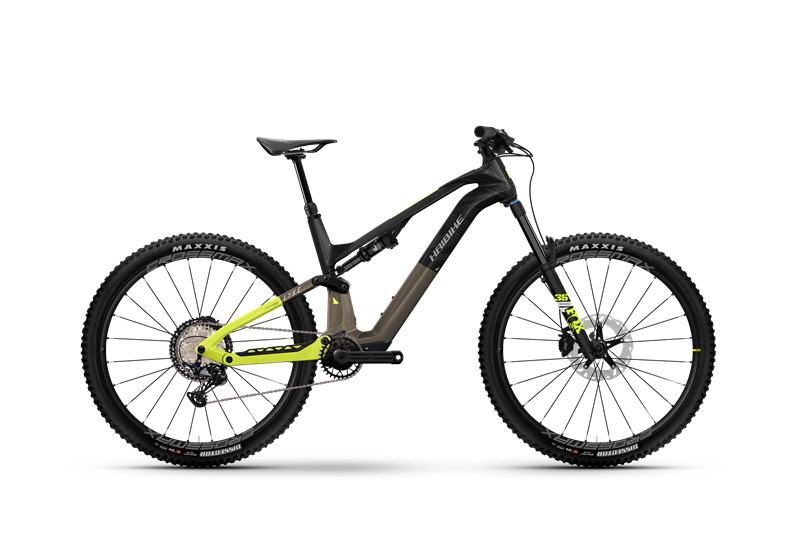

haibike e bike fully 2024 Haibike LYKE CF 11 model 2024 – svet-elektrokolRiding an e bike has never been easier: With the Lyke 11 from our brand new lightweight e mountain bike range, you can experience riding fun in a whole new dimension. In this ultra light and agile full suspension e bike, sporty riders will find the perfect companion for fast uphill and downhill rides. The carbon frame with closed downtube and the new Fazua Ride60 motor, compactly located in the seat post, save you extra kilos. High quality Shimano XT
What is the most interesting thing about an electric bike:
Fazua Ride 60 + ENERGY 430
- The smallest, lightest, most advanced sports drive kit for e-bikes
- Quiet and precise motor in a compact package guarantees natural driving performance
- Engine weight 1.96kg
- ENERGY 430 battery weighing 2.30 kg
- Possibility of installing an additional 210 Wh battery
- Torque 60Nm
Geometry and size selection
| Frame size | WITH | M | L | XL | |
| For a figure of approx.: | 160 - 172 cm | 168 - 180 cm | 176 - 188 cm | 184 - 196 cm | |
| AND | Frame height: | 41.0 cm | 44.0 cm | 47.0 cm | 50.0cm |
| B | Seat tube angle | 74.0° | 74.0° | 74.0° | 74.0° |
| C | Seatpost offset | 36.0mm | 36.0mm | 36.0mm | 36.0mm |
| D | Saddle angle | 77.3° | 77.3° | 77.3° | 77.3° |
| E | Head tube | 110.0mm | 120.0mm | 130.0mm | 140.0mm |
| F | Head tube angle | 65.0° | 65.0° | 65.0° | 65.0° |
| G | Top tube | 562.0mm | 592.0mm | 622.0mm | 652.0mm |
| H | Chain strut | 450.0mm | 450.0mm | 450.0mm | 450.0mm |
| AND | BB drop | -25.0mm | -25.0mm | -25.0mm | -25.0mm |
| J | Wheelbase | 1195.0mm | 1227.0mm | 1259.0mm | 1290.0mm |
| TO | Stack | 611.0mm | 620.0mm | 629.0mm | 638.0mm |
| L | Reach | 424.0mm | 452.0mm | 479.0mm | 506.0mm |
Technical parameters table:
Skeleton
Frame: Haibike carbon, Tapered Head Tube, 29", 140mm
Fork: FOX 36 Float Performance, air, 140mm
FOX Float DPS Performance EVOL air shock
Drive
Engine: Fazua Ride60, 250W, 25km/h, 60Nm
Display: Fazua
Battery: Fazua Energy InTube 430Wh
Charger: Fazua 3A
Cast
Shifter: Shimano Deore XT M8100 Shadow Plus, 12 Speed, Deore XT M8100, Trigger shifter
Shifter: SX Eagle, Trigger shifter
Cranks: Rotor E-Kapic
Converter: N/A
Cassette: Shimano M7100, 10-51 teeth
Chain: Shimano SLX M7100
Brakes: Shimano Deore XT M8120, 203mm / 180mm
Discs: 203 / 180 mm
Wheels
Wheel size: 29"
Mavic E- Crossmax XL S plots
Tires: Maxxis Dissector MaxxTerra EXO, 62-622 / Maxxis Dissector MaxxTerra EXO+, 62-622
Cockpit and seating:
Grips:
Handlebar: XLC FlowBy, 780 mm
Stem: XLC FlowBy, A-head, Handlebar diameter
Headset: Acros BlockLock
Saddle: Selle Italia Model X
Seat post: dropper-post remote, telescopic, 31.6 mm, aluminum
Pedals: Freeride pedal, Aluminum, with reflector
Weight: 18.6 kg (*)
Load capacity: 120 kg
(*) information taken from Fazua.com - it is not specified which Lyke model and size it is, nor the method of weighing. The manufacturer does not state the weight.
